GE F26DBX/830/ECO4P - 97611

Lamp	F26DBX/830/ECO4P
Description	26W CRI 82 T4 4-Pin (G24q-3) 3000K ECO
Brand	GE
MPN	97611
UPC	043168976114

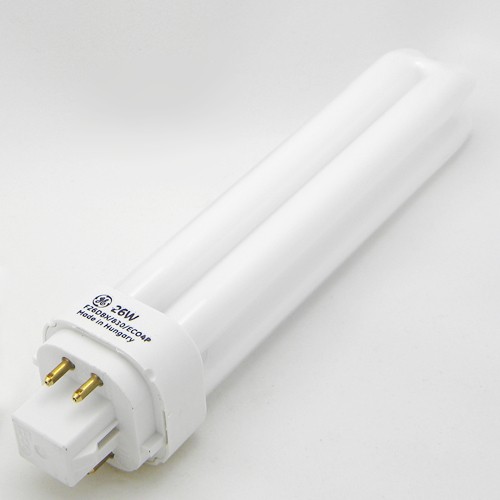

The F26DBX/830/ECO4P GE 97611 is a 4-Pin Compact Fluorescent T4 26W Lamp with a G24q-3 base.

Specifications for the 97611 GE F26DBX/830/ECO4P Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T4
Lamp Base	G24q-3 (4-Pin)
Bulb Finish	White
Rated Life	12000 hours

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	1710
Color Temperature	3000 K
Color Rendering Index (CRI)	82

ELECTRICAL CHARACTERISTICS
Watts	26 W

DIMENSIONS
Maximum Overall Length - MOL	6.40in (162.60mm)

PRODUCT INFORMATION
Product Code	97611
Family Name	GE Ecolux Biax / 4-Pin Double Biax
Description	F26DBX/830/ECO4P
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	10
Sales Unit	Each
UPC	043168976114

GE F26DBX/830/ECO4P 97611 Replacement Bulb Applications & Features

Applications

Facilities
Retail Display
Hospitality
Office
Restaurant
Warehouse

Features

General Electric F26DBX830ECO4P Ecolux CFL
4-Pin Double Biax Bulb
GE Plug-in Compact Fluorescent Lamp
High Color Rendering
Energy Savings
Warm White Color Tone
Quad Tube
Dimmable with Appropriate Dimming Ballast
EOL Protection
Biax D ECO 26W 4 Pin

F26DBX/830/ECO4P GE Compact Fluorescent Lamp

The F26DBX/830/ECO4P GE fluorescent lamps operate at high surface temperatures that can cause serious physical injuries.
Turn power off and allow adequate time (approximately 10 minutes) for the GE F26DBX/830/ECO4P lamp to cool before attempting replacement.
In order to avoid the risk of electrical shock, make sure the power to the fixture is turned off when replacing the F26DBX/830/ECO4P GE.
The GE F26DBX/830/ECO4P lamps are very fragile. Do not drop, crush, bend or shake them.
The F26DBX/830/ECO4P GE fluorescent tubes may shatter with considerable force when broken.
To ensure that the GE F26DBX/830/ECO4P lamps remain in the sockets for the duration of the operation, make sure that the fixture’s sockets are not worn prior to installation of the lamps.
If the F26DBX/830/ECO4P GE lamps are installed in worn sockets, the lamps could fall out of the fixture during operation.
Never operate GE F26DBX/830/ECO4P lamp above or below its rated current voltage.
Electrical connections should be clean and in good condition. Replace the F26DBX/830/ECO4P GE lamp holders and sockets when needed.
Affix the GE F26DBX/830/ECO4P lamp securely in the socket. Improper installations will cause electrical arcing, overheating and short life to the lamp and socket.
Do not look directly at the operating lamp for any period of time; this may cause serious eye injury.
F26DBX/830/ECO4P GE fluorescent lamp use is not recommended in extreme weather conditions.
Excessive cold/warm temperatures dramatically affects the GE F26DBX/830/ECO4P starting, lamp life and lumen maintenance.
