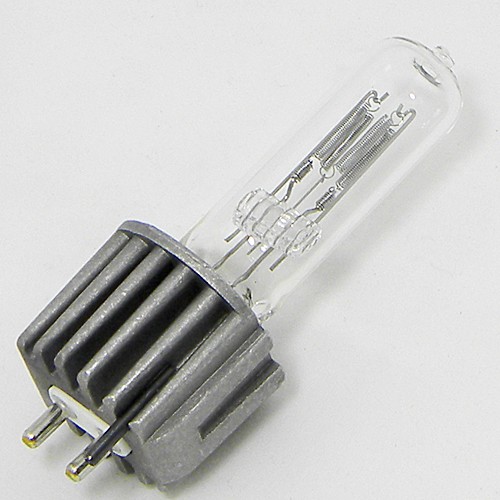

Osram HPL 750/115 - 54602
The HPL 750/115 Osram 54602 is a Halogen T6 115V 750W Lamp with a Medium BiPin with Heat Sink base.
Specifications for the 54602 Osram HPL 750/115 Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T6 |
| Lamp Base | Medium BiPin with Heat Sink |
| Filament | 4-C8 |
| Bulb Finish | Clear |
| Rated Life | 300 hours |
| Light Center Length - LCL | 2.35in (60.30mm) |
| Operating Position | Universal |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 21900 |
| Color Temperature | 3265 K |
| Color Rendering Index (CRI) | 100 |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 750 W |
| Volts | 115 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 4.10in (104.10mm) |
| Diameter | 0.74in (18.80mm) |
| PRODUCT INFORMATION | |
| Product Code | 54602 |
| Family Name | Osram HPL Ultra Plus (UCF) Ended Tungsten Halogen Lamps |
| Description | HPL 750/115 |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 12 |
| Sales Unit | Each |
| UPC | 046135546020 |
Osram HPL 750/115 54602 Replacement Bulb Applications & Features
Applications
- Theatre
- TV
- Studio
- Professional Photography
- Entertainment and Architectural Lighting
- Source Four Series
Features
- Osram HPL 750/115V Halogen Bulb
- Metal Heat Sink Base
- Ultra Compact Filament
- HPL 750 Single Ended Lamp
- Halogen Display Optic Lamp
HPL 750/115 Osram Halogen Lamp
- DANGER! The HPL750/115V Osram replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
- Only use the Osram HPL 750/115 replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Osram HPL750/115V Halogen lamp upon the event of a lamp burst.
- Do not use the HPL 750/115 Osram replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
- Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life of the Osram HPL750/115V.
- Do not touch the Osram HPL 750/115 bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
- Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the HPL 750/115 Osram replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
- Never touch the Osram HPL 750/115 lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
- Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
- Always turn off the electrical power before inserting, removing, or cleaning the replacement Osram HPL 750/115 lamp.
- Affix the HPL 750/115 Osram replacement lamp securely in the socket. Improper installation of the Osram HPL 750/115 replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
- Keep the temperature of the Osram HPL 750/115 lamp seal below 350C.
- Keep the temperature of the HPL750/115V Osram replacement lamp wall above 250C.
- Keep the temperature of the Osram HPL 750/115 lamp wall below 800C.
- Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
- Osram HPL 750/115 replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive the Osram HPL750/115V lamp over its rated voltage.
- Operate the Osram HPL 750/115 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
- Use an external fuse when required.
- Do not allow the HPL750/115V lamp to directly expose another. This may lead to overheating and shortened lamp life of the HPL750/115V.
