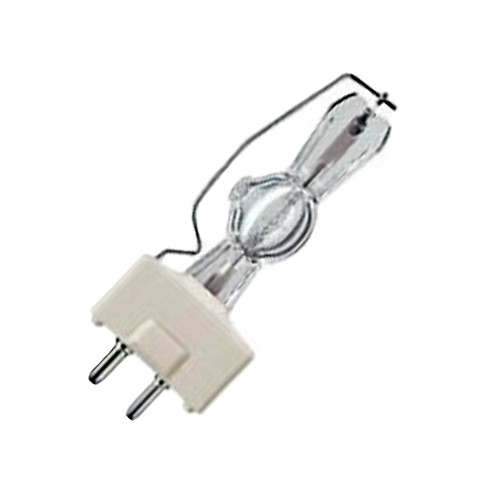

Specifications for the 287128 Philips MSR 700 SA Replacement Lamp
GENERAL CHARACTERISTICS |
Lamp Base |
GY9.5 (2-Pin Prefocus) |
Bulb Finish |
Clear |
Rated Life |
750 hours |
Light Center Length - LCL |
1.54in (39.00mm) |
Operating Position |
Universal |
PHOTOMETRIC CHARACTERISTICS |
Initial Lumens |
55000 |
Color Temperature |
5600 K |
Color Rendering Index (CRI) |
80 |
ELECTRICAL CHARACTERISTICS |
Watts |
700 W |
Volts |
72 V |
DIMENSIONS |
Maximum Overall Length - MOL |
3.27in (83.00mm) |
Diameter |
0.98in (25.00mm) |
PRODUCT INFORMATION |
Product Code |
287128 |
Family Name |
Philips Broadway Metal Halide Lamps |
Description |
MSR 700 SA |
SKU Qty |
1 |
Case Qty (Price Listed is Per Bulb) |
40 |
Sales Unit |
Each |
UPC |
08718291228028 |
Philips MSR 700 SA 287128 Replacement Bulb Applications & Features
Applications
- Entertainment
- Theatre
- Stage
- Disco
- Concert
Features
- Philips MSR700SA Metal Halide Bulb 24502-7
- Single Ended Lamp
- Short Arc
- Arc Length 4mm
- Previous Philips Code 287185 28718-5
- 9281 703 05108
- 8711500199492
Philips MSR 700 SA 287128 Replacement Lamp
Equipment
- Vari-Lite VL7 Spot Luminaire
MSR 700 SA Philips Multi Vapor Lamp
- The MSR 700 SA Philips lamp may shatter and cause injury if broken.
- Dispose of the Philips MSR 700 SA lamp in a closed container.
- Do not use excessive force when installing the MSR 700 SA Philips lamp.
- Do not use the Philips MSR 700 SA lamp if outer glass is scratched or broken.
- Wear safety glasses and gloves when handling the MSR 700 SA Philips lamp.
- Unexpected Philips MSR 700 SA lamp rupture may cause injury, fire, or property damage.
- Do not exceed rated voltage of the Philips MSR700 SA.
- Do not store flammable materials near/below the MSR 700 SA Philips lamp.
- Do not turn on the Philips MSR 700 SA lamp until fully installed.
- Do not use MSR700 SA Philips beyond its rated life.
- Do not use the MSR 700 SA Philips lamp if outer glass is scratched or broken.
- Do not use the Philips MSR700 SA where directly exposed to water or outdoors without an enclosed fixture.
- Operate the Philips MSR 700 SA lamp only in specified position.
- Turn the MSR 700 SA Philips lamp off at least once for 15 minutes per week.
- Use only properly rated ballast with the Philips MSR700 SA.
- A damaged MSR 700 SA Philips lamp emits UV radiation which may cause eye/skin injury.
- There is a risk of burn, fire, and electrical shock when installing the Philips MSR700 SA.
- Turn power off if glass bulb is broken. Remove and dispose of lamp.
- Allow the Philips MSR 700 SA lamp to cool before handling.
- Do not turn on the MSR 700 SA Philips lamp until fully installed.
- Do not use where directly exposed to water or outdoors without an enclosed fixture.
- Turn power off before inspection, installation or removal of the MSR700 SA Philips.
- Keep combustible materials away from the Philips MSR 700 SA lamp.
- Use the MSR700 SA Philips in fixture rated for this product.
WARNING: This lamp can cause serious skin burns and eye inflammation from shortwave ultraviolet radiation if the outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.
