SORAA SM16-09-36D-927-03 - 00963
| Lamp | SM16-09-36D-927-03 |
| Description | 9W 12V CRI 95 MR16 GU5.3 2700K 36° VIVID |
| Brand | SORAA |
| MPN | 00963 |
| Previous MPN | 00255, MR16-65-B01-12-927 |
| UPC | 849565009635 |
| CA Title 24 / JA8 Compliant | Yes |
| Dimmable | Yes |

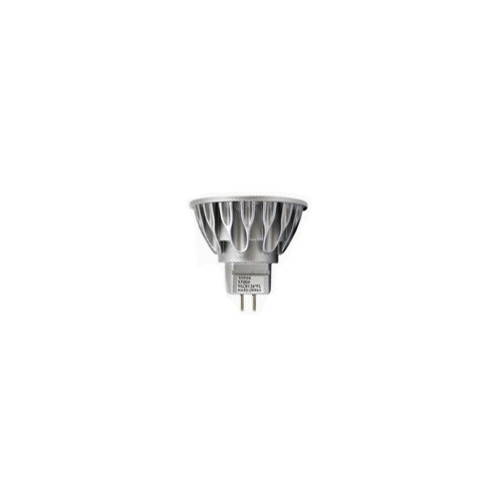

The Soraa SM16-09-36D-927-03 is a 9W 12V 2700K MR16 LED lamp with a 36° beam spread and 2 Pin (GU5.3) base.
Specifications for the 00963 SORAA SM16-09-36D-927-03 Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | MR16 |
| Lamp Base | GU5.3 (2 Pin) |
| Outside Finish | Silver |
| Rated Life | 35000 hours |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 465 |
| Beam Spread | 36° |
| CBCP (cd) | 1210 |
| Color Temperature | 2700 K |
| Color Rendering Index (CRI) | 95 |
| Equivalent Wattage | 60W Halogen MR16 |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 9 W |
| Volts | 12 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 1.79in (45.5mm) |
| Diameter | 1.97in (50.1mm) |
| PRODUCT INFORMATION | |
| Product Code | 00963 |
| Family Name | Vivid Series |
| Description | SM16-09-36D-927-03 |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 10 |
| Sales Unit | Each |
| UPC | 849565009635 |
| CA Title 24 / JA8 Compliant | Yes |
SORAA SM16-09-36D-927-03 00963 Replacement Bulb Applications & Features
Applications
- Track Lighting
- Accent Lighting
- Outdoor sealed or non-ventilated
- Indoor sealed or non-ventilated
- Applications with glass lenses
- Healthcare Lighting
- Hospitality Lighting
- Office Lighting
- Retail Lighting
Features
- Thermally and geometrically compatible with standard fixtures.
- Suitable for fully enclosed fixtures per UL 1993. Can be used with front glass cover.
- Suitable for damp locations per UL.
- Works with trailing edge and leading edge phase cut dimmers.
- Soraa lamps are designed to safely turn down in any thermal environment not conducive to minimum airflow or proper ventilation.
- 85% more energy efficient than standard halogen lamps.
- Three year warranty
- CERTIFICATIONS UL/CUL Class 2 & non-Class 2, FCC Title 47 Part 15B, RoHS, CE
Dimmer Info for the SORAA SM16-09-36D-927-03 00963 Replacement Lamp
Soraa Tested Dimmer & Transformer Combinations
Soraa Tested Dimmer & Transformer Combinations
| Trailing Edge Dimmers | Lutron | Leviton | Marlin | |||||
|---|---|---|---|---|---|---|---|---|
| Electronic Transformers | Model | Diva DVELV-300P |
SPSELV-600 | Maestro MAELV-600 |
Nova T NTELV-300 |
Skylark SELV-300P |
6615-P 300W |
Stellar DIMMING CABINET |
| Hatch | RS12-60M | 9% | 26% | 11% | 13% | 10% | No | 9% |
| VS12-60 | 7% | 24% | 13% | No | 8% | 32% | 0% | |
| VS12-60WD | 8% | 17% | 12% | 15% | 9% | 24% | 6% | |
| VS12-75WD | 8% | 23% | 13% | 14% | 9% | 24% | No | |
| VS12-105 | No | No | No | No | No | No | No | |
| VS12-150 | 9% | 19% | 14% | 15% | 10% | 44% | No | |
| Lightech | LET 60 | 6% | 23% | 9% | 14% | 8% | 41% | 16% |
| LET 75 | 5% | 21% | 10% | 10% | 6% | 41% | 15% | |
| LET 105 | 7% | 12% | 12% | 13% | 8% | 31% | 9% | |
| LET 151 R LDC | 6% | No | No | 51% | No | 82% | 8% | |
| 303 AC 120 12 | 9% | 16% | 16% | 17% | 11% | 24% | 10% | |
| B+L | CV90021 | 10% | 17% | 16% | 17% | 12% | 37% | N/A |
| FX95100 | 9% | 14% | 13% | 15% | 10% | 63% | N/A | |
| MS90119 | No | 21% | 13% | No | N/A | N/A | N/A | |
| CV-10/75-12 | 10% | 19% | 12% | 16% | 11% | 29% | N/A | |
| Leading Edge Dimmers | Lutron | Marlin | ||||
|---|---|---|---|---|---|---|
| Magnetic Transformers |
Model |
Grafik Eye #3000 | Skylark SLV-600P |
Diva DVLV-600P |
Ceana CNLV-600P |
Stellar DIMMING CABINET P/N 6-3-08-20-3-103T with RMS 8 Control Unit - approx. 6 Kilo-Watts Total |
| Cooper | TF-149911 | 35% | 24% | 29% | 26% | 9% |
| TF 149911-TP120 | 39% (Ventilated fixture) |
24% | N/A | 25% | 9% | |
| Linea | 701970 | 40% (Ventilated Fixture) |
26% | 32% | 28% | 9% |
| Hasler Electric | MI-5481E | 37% (Ventilated Fixture) |
N/A | N/A | N/A | 9% |
| Juno | 310-1333 | 39% | 23% | N/A | N/A | 8% |
| Orientronic | DLR1250BN | N/A | N/A | N/A | N/A | 8% |
| Q-TRAN | QT-50-75CK-PT-BLK-4 | N/A | N/A | N/A | N/A | No |
| QT50SV-120/12-RC | N/A | N/A | N/A | N/A | 8% | |
| QT20-120/12-TP-RC | N/A | N/A | N/A | N/A | 9% | |
| QT10-120/12-TP-RC | N/A | N/A | N/A | N/A | 8% | |
| Q6S-DC-120-12 (Rectified) | N/A | N/A | N/A | N/A | 10% | |
| QTM60-DC+CAP (Rectified + Filtered) |
N/A | N/A | N/A | N/A | 19% | |
