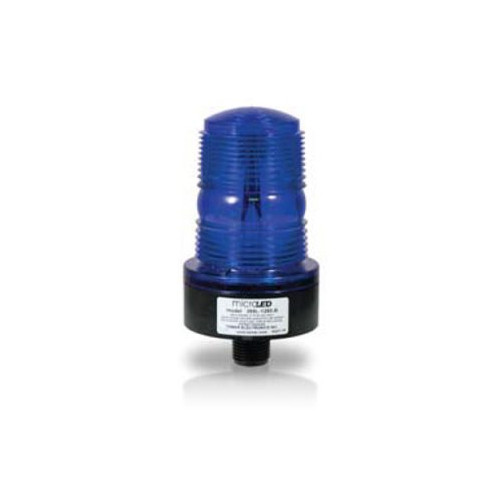

Tomar 395A-1280 Blue - 395A-1280-B
Tomar Electronics’ 300A series is the newest addition to our MicroLED line of compact flashing LED’s. Its 3 high-powered LED’s assure maximum light output and full 360 degree coverage. The 300A series is the ideal choice for Lift truck applications or wherever a compact warning light is required. It generates twice the light output of our 300L series in Amber, and its wider vertical beam spread assures better visibility. The durable vibration resistant construction, long life 100,000 hour LED technology is backed up with a full five year warranty.
The tough Lexan lens is spun welded to the base to completely seal out moisture and prevent internal condensation. It is UL recognized and manufactured to NEMA 4X specifications, and is engineered to operate over a wide DC input voltage range of 12-80 VDC.
Specifications for the Tomar 395A-1280 Blue Replacement Beacon
| GENERAL CHARACTERISTICS | |
| Lens Color | Blue |
| Voltage | 12 - 80 VDC |
| Flashes per Min (FPM) | 75 NEOBE® flashes per minute - each flash containing 7 rapid bursts of light |
| Mount | .5" Thread Mount |
| Amperage | 34 mA @ 12 VDC 15 mA @ 24 VDC 12 mA @ 36 VDC 11 mA @ 48 VDC 9 mA @ 80 VDC |
| Operating Temperature | -40 C to 65 C |
| ELECTRICAL CHARACTERISTICS |
| DIMENSIONS | |
| Height | 4.575in (116.20mm) |
| PRODUCT INFORMATION | |
| Series | MicroLED |
| Description | 395A-1280 Blue |
| SKU Qty | 1 |
| Sales Unit | Each |
Tomar 395A-1280 Blue 395A-1280-B Replacement Beacon Applications & Features
Features
- 5 Year Warranty
- NEMA 4X
- UL Recognized
- 100,000 Hour LED
- Lexan Lens
- Neobe ® Flashing Technology
Literature for the Tomar 395A-1280 Blue 395A-1280-B Replacement Beacon
 395A-1280 Blue Installation Guide |
