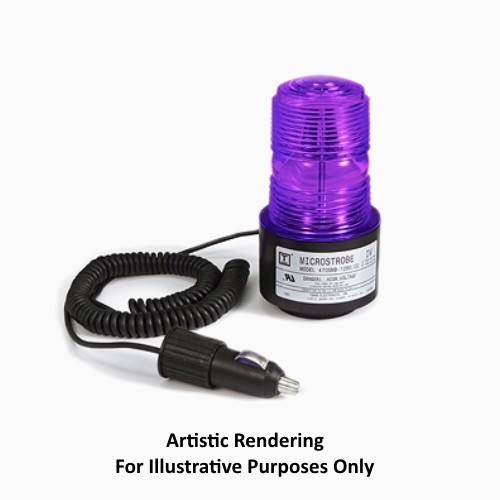

Tomar 470SMB-1280-CC Purple - 470SMB-1280-CC-P

470SMB-1280-CC Purple
Tomar
Brand Tomar
Lens Purple
Mount Magnetic
Voltage 12 - 80VDC
MPN 470SMB-1280-CC-P

$197.51

Options
G470 - Heavy Duty Guard $41.20
Replacement Parts
5001 $25.10
UL Listed
The MICRO IV strobe family is an enhanced version of the MICROSTROBE featuring a power supply which operates over a wide input voltage range of 1280VDC or 1624VAC. The supply has a regulated output so that the lamp brightness and flash remain constant when operated over the rated input voltage range. The power supply is potted in polyurethane for the ultimate in protection from moisture, vibration and exposure to high voltage. The enclosure is all Lexan®, and the plug-in lamp is field replaceable. All units are polarity protected and have built-in filters to protect against radio interference and spike voltages. The MICRO IV is covered by a 10 year warranty. The MICRO IV and its guard are UL component recognized for type E, EE, and ES electric industrial trucks covered by UL standard #583.
Specifications for the Tomar 470SMB-1280-CC Purple Replacement Beacon
GENERAL CHARACTERISTICS
Lens Color Purple
Voltage 12 - 80VDC
Flashes per Min (FPM) 60 to 80 flashes per minute
Encapsulation Fully potted in urethane material with no exposure to High Voltage possible
Mount Magnetic
Amperage 12-80VDC draws 0.4A average @ 12VDC tapering to 0.05A average @ 80VDC
Operating Temperature -40 C to 65 C
Light Output 50 effective candlepower (ECP)
ELECTRICAL CHARACTERISTICS
Joules 2.3 joules per flash. 230,000 peak candlepower
DIMENSIONS
Height 5.00in (127.00mm)
Diameter 3.00in (76.00mm)
PRODUCT INFORMATION
Series MICRO IV™
Family Name Single Flash Strobe, DC
Description 470SMB-1280-CC Purple
SKU Qty 1
Sales Unit Each
Tomar 470SMB-1280-CC Purple 470SMB-1280-CC-P Replacement Beacon Applications & Features

Features

  • Built-in RFI filters
  • Wide input voltage range
  • Potted power supply
  • Universal mounting
  • Lens has hermetic O-ring seal
  • 10 year warranty on power supply
  • 1 year warranty on lamp
  • UL recognized
  • NEMA 4X
Literature for the Tomar 470SMB-1280-CC Purple 470SMB-1280-CC-P Replacement Beacon

PDF IconTomar 470SMB-1280-CC Purple Specifications
PDF IconTomar 470SMB-1280-CC Purple UL Card
