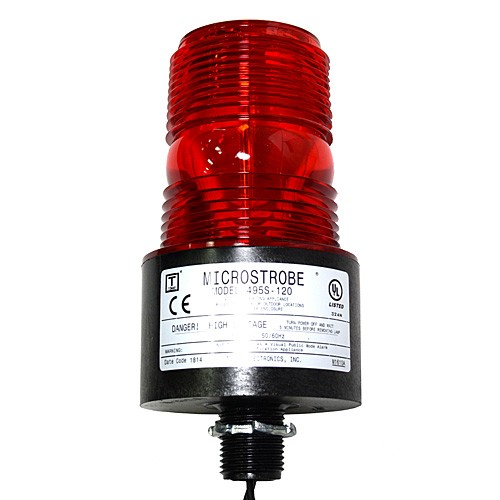

Tomar 495S-120 Red - 495S-120-R
The MICROSTROBE® family is a low profile, single flash, low cost strobe light which features a plug-in replaceable lamp and Lexan® lens. The high efficiency, solid state, power supply is fully potted in polyurethane for the ultimate in protection from moisture, vibration and exposure tohigh voltage. All units are polarity protected and have built-in filters to protect against radio interference and spike voltages.
Specifications for the Tomar 495S-120 Red Replacement Beacon
| GENERAL CHARACTERISTICS | |
| Lens Color | Red |
| Voltage | 120VAC |
| Flashes per Min (FPM) | 60 to 80 flashes per minute |
| Frequency | 50/60Hz |
| Encapsulation | Fully potted in urethane material with no exposure to High Voltage possible |
| Mount | 1/2" Male Pipe Thread |
| Amperage | 120VAC draw 0.07A average |
| Operating Temperature | -40 C to 65 C |
| Light Output | 50 effective candlepower (ECP) |
| ELECTRICAL CHARACTERISTICS | |
| Joules | 2.3 joules per flash. 230,000 peak candlepower |
| DIMENSIONS | |
| Height | 5.00in (127.00mm) |
| Diameter | 3.00in (76.00mm) |
| PRODUCT INFORMATION | |
| Series | MICROSTROBE® |
| Family Name | Single Flash Strobe, AC |
| Description | 495S-120 Red |
| SKU Qty | 1 |
| Sales Unit | Each |
Tomar 495S-120 Red 495S-120-R Replacement Beacon Applications & Features
Features
- Built-in RFI filters
- Lens has hermetic O-ring seal
- Solid state power supply
- 2 year warranty on power supply
- 1 year warranty on lamp
- UL listed
- NEMA 4X
Literature for the Tomar 495S-120 Red 495S-120-R Replacement Beacon
 Tomar 495S-120 Red Application Guide |
| Tomar 495S-120 Red UL Card |
