Ushio BLC - 1000060

Lamp	BLC
Description	30W 120V S11 DC Bay (BA15d) 2775K
Brand	Ushio
MPN	1000060
UPC	048777103852

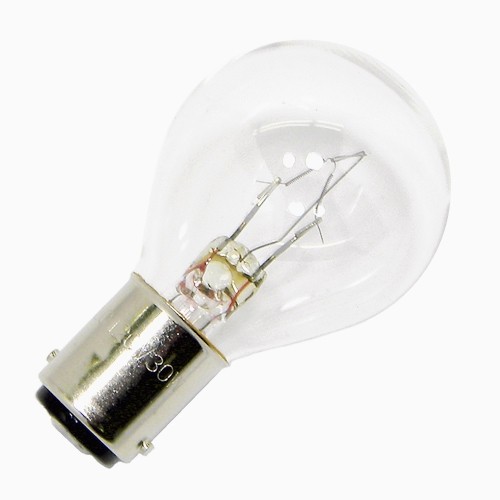

The BLC Ushio 1000060 is an Incandescent S11 120V 30W Clear Lamp with a BA15d base.

Specifications for the 1000060 Ushio BLC Replacement Lamp

GENERAL CHARACTERISTICS
Shape	S11
Lamp Base	BA15d (Double Contact Bayonet)
Filament	CC-2V
Bulb Finish	Clear
Rated Life	50 hours
Light Center Length - LCL	1.37in (34.90mm)
Operating Position	BD/Hor

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	400
Color Temperature	2775 K

ELECTRICAL CHARACTERISTICS
Watts	30 W
Volts	120 V

DIMENSIONS
Maximum Overall Length - MOL	2.37in (60.30mm)
Diameter	1.38in (35.00mm)

PRODUCT INFORMATION
Product Code	1000060
Family Name	Ushio Incandescent Projection Lamps
Description	BLC
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	12
Sales Unit	Each
UPC	048777103852

Ushio BLC 1000060 Replacement Bulb Applications & Features

Applications

Appliance & Indicators Bulb
Optical Projection

Features

Ushio BLC Projection Bulb
Single Ended Lamp
Microscope Illuminator Bulb

Ushio BLC 1000060 Replacement Lamp

Equipment

Bausch & Lomb 31-31-71-05
Bausch & Lomb 31-31-71-03
Galen 31-70-01
Olympus 8B152
Olympus CHB
Olympus CHT
Olympus KHC
Olympus KK2

BLC Ushio Incandescent Lamp

DANGER! The BLC Ushio replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Do not use the BLC Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Ushio BLC bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Never touch the BLC Ushio lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio BLC lamp.
Affix the BLC Ushio replacement lamp securely in the socket. Improper installation of the Ushio BLC replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Ushio BLC replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Ushio BLC replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
