Ushio CF13D/835 - 3000053
| Lamp | CF13D/835 |
| Description | 13W 59V CRI 82 T4 2-Pin (GX23-2) 3500K Ultra-D |
| Brand | Ushio |
| MPN | 3000053 |
| UPC | 048777248829 |

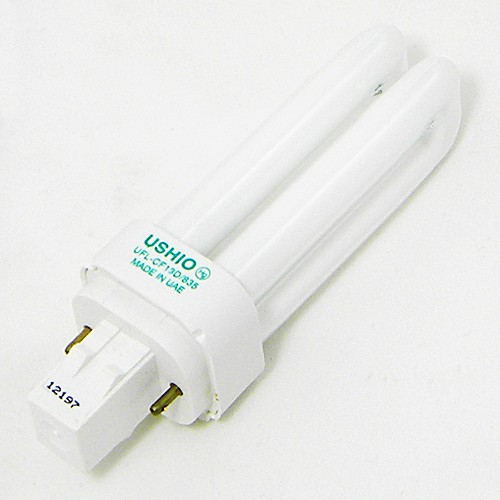

The CF13D/835 Ushio 3000053 is a 2-Pin Compact Fluorescent 59V 13W Lamp with a GX23-2 base.
Specifications for the 3000053 Ushio CF13D/835 Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T4 |
| Lamp Base | GX23-2 (2-Pin) |
| Bulb Finish | White |
| Rated Life | 10000 hours |
| Operating Position | Universal |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 700 |
| Color Temperature | 3500 K |
| Color Rendering Index (CRI) | 82 |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 13 W |
| Volts | 59 V |
| DIMENSIONS |
| PRODUCT INFORMATION | |
| Product Code | 3000053 |
| Family Name | Ushio Ultra-D Series |
| Description | CF13D/835 |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 50 |
| Sales Unit | Each |
| UPC | 048777248829 |
Ushio CF13D/835 3000053 Replacement Bulb Applications & Features
Applications
- Facilities
- Retail Display
- Hospitality
- Office
- Restaurant
- Warehouse
Features
- Ushio UFL-CF13D/835 Compact Fluorescent Lamp
- Ultra-D Double Tube Bulb
- 2-Pin Base
- Energy Saving
- 13W D/3500K GX23-2
CF13D/835 Ushio Compact Fluorescent Lamp
- The CF13D/835 Ushio fluorescent lamps operate at high surface temperatures that can cause serious physical injuries.
- Turn power off and allow adequate time (approximately 10 minutes) for the Ushio CF13D/835 lamp to cool before attempting replacement.
- In order to avoid the risk of electrical shock, make sure the power to the fixture is turned off when replacing the CF13D/835 Ushio.
- The Ushio CF13D/835 lamps are very fragile. Do not drop, crush, bend or shake them.
- The CF13D/835 Ushio fluorescent tubes may shatter with considerable force when broken.
- To ensure that the Ushio CF13D/835 lamps remain in the sockets for the duration of the operation, make sure that the fixture’s sockets are not worn prior to installation of the lamps.
- If the CF13D/835 Ushio lamps are installed in worn sockets, the lamps could fall out of the fixture during operation.
- Never operate Ushio CF13D/835 lamp above or below its rated current voltage.
- Electrical connections should be clean and in good condition. Replace the CF13D/835 Ushio lamp holders and sockets when needed.
- Affix the Ushio CF13D/835 lamp securely in the socket. Improper installations will cause electrical arcing, overheating and short life to the lamp and socket.
- Do not look directly at the operating lamp for any period of time; this may cause serious eye injury.
- CF13D/835 Ushio fluorescent lamp use is not recommended in extreme weather conditions.
- Excessive cold/warm temperatures dramatically affects the Ushio CF13D/835 starting, lamp life and lumen maintenance.
