Ushio CF42TE/841 - 3000224
| Lamp | CF42TE/841 |
| Description | 42W 135V CRI 82 T4 4-Pin (GX24q-4) 4100K Ultra-TE |
| Brand | Ushio |
| MPN | 3000224 |
| UPC | 048777259887 |

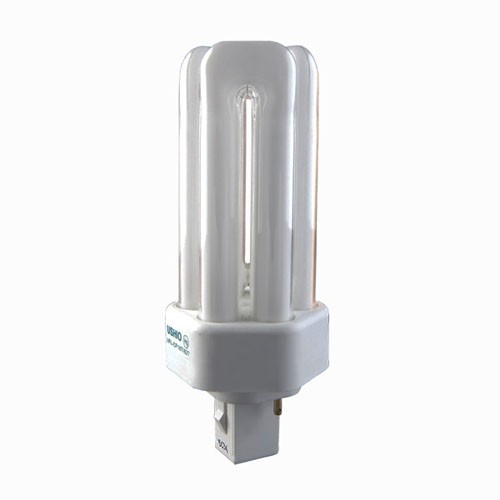

The CF42TE/841 Ushio 3000224 is a 4-Pin Compact Fluorescent 135V 42W Lamp with a GX24q-4 base.
Specifications for the 3000224 Ushio CF42TE/841 Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T4 |
| Lamp Base | GX24q-4 (4-Pin) |
| Bulb Finish | White |
| Rated Life | 10000 hours |
| Operating Position | Universal |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 2880 |
| Color Temperature | 4100 K |
| Color Rendering Index (CRI) | 82 |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 42 W |
| Volts | 135 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 6.70in (168.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 3000224 |
| Family Name | Ushio Ultra-TE Series |
| Description | CF42TE/841 |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 50 |
| Sales Unit | Each |
| UPC | 048777259887 |
Ushio CF42TE/841 3000224 Replacement Bulb Applications & Features
Applications
- Facilities
- Retail Display
- Hospitality
- Office
- Restaurant
- Warehouse
Features
- Ushio UFL-CF42TE/841 Compact Fluorescent Lamp
- Ultra-TE Triple Tube Dimmable Bulb for Electronic Ballasts
- 4-Pin Base
- Energy Saving
- 42W T/4100K GX24q-4
CF42TE/841 Ushio Compact Fluorescent Lamp
- The CF42TE/841 Ushio fluorescent lamps operate at high surface temperatures that can cause serious physical injuries.
- Turn power off and allow adequate time (approximately 10 minutes) for the Ushio CF42TE/841 lamp to cool before attempting replacement.
- In order to avoid the risk of electrical shock, make sure the power to the fixture is turned off when replacing the CF42TE/841 Ushio.
- The Ushio CF42TE/841 lamps are very fragile. Do not drop, crush, bend or shake them.
- The CF42TE/841 Ushio fluorescent tubes may shatter with considerable force when broken.
- To ensure that the Ushio CF42TE/841 lamps remain in the sockets for the duration of the operation, make sure that the fixture’s sockets are not worn prior to installation of the lamps.
- If the CF42TE/841 Ushio lamps are installed in worn sockets, the lamps could fall out of the fixture during operation.
- Never operate Ushio CF42TE/841 lamp above or below its rated current voltage.
- Electrical connections should be clean and in good condition. Replace the CF42TE/841 Ushio lamp holders and sockets when needed.
- Affix the Ushio CF42TE/841 lamp securely in the socket. Improper installations will cause electrical arcing, overheating and short life to the lamp and socket.
- Do not look directly at the operating lamp for any period of time; this may cause serious eye injury.
- CF42TE/841 Ushio fluorescent lamp use is not recommended in extreme weather conditions.
- Excessive cold/warm temperatures dramatically affects the Ushio CF42TE/841 starting, lamp life and lumen maintenance.
