Ushio FCR - 1000490

FCR
Ushio
Lamp FCR (JC12V-100W)
Description 12V 100W 2-Pin (GY6.35) Clear
Brand Ushio
MPN 1000490
UPC 048777131855

$8.64

In Stock

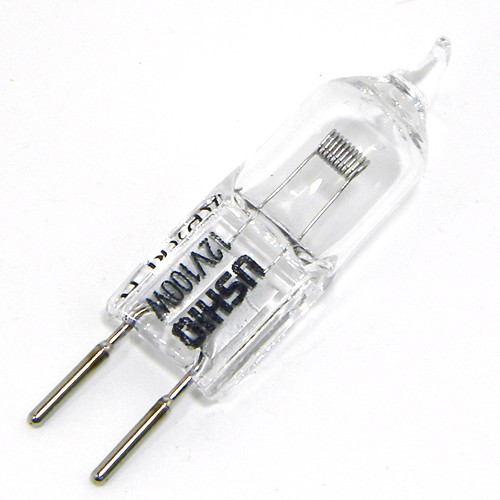

The FCR Ushio 1000490 is a Halogen T3.5 12V 100W Lamp with a GY6.35 base.
Specifications for the 1000490 Ushio FCR Replacement Lamp
GENERAL CHARACTERISTICS
Shape T3.5
Lamp Base GY6.35 (Glass 2-Pin)
Filament CBar6
Bulb Finish Clear
Rated Life 50 hours
Light Center Length - LCL 1.18in (30.00mm)
Operating Position BD/Hor
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 3400
Color Temperature 3300 K
ELECTRICAL CHARACTERISTICS
Watts 100 W
Volts 12 V
DIMENSIONS
Maximum Overall Length - MOL 1.73in (44.00mm)
Diameter 0.43in (11.00mm)
PRODUCT INFORMATION
Product Code 1000490
Family Name Ushio JC Series Halogen Low Voltage Bi-Pin Lamps
Description FCR
Ordering Code JC12V-100W
LIF A1/215
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 048777131855
Ushio FCR 1000490 Replacement Bulb Applications & Features

Applications

  • Dental
  • Microfilm
  • Microscope
  • Projection
  • Studio
  • X-Ray


Features

  • Ushio FCR (JC12V-100W) Halogen Bulb
  • Single Ended Lamp
  • Replacement for ZB-FCR
  • Replacement Lamp for Dental - Fiber Optic Handpiece
  • Replacement Lamp for Microscope - Illuminator
  • Replacement Lamp for X-Ray - Collimator
  • Only for Use in Approved Enclosed Halogen Fixtures
Ushio FCR 1000490 Replacement Lamp

Equipment

  • Leica 500-037 Microscope
  • AO-Reichert 2052 Microscope
  • Leica 500-974 Microscope
  • Leica LH100 Microscope
  • Leica LH100Z Microscope
  • Leica LH102Z Microscope
  • Leica Biopromar Microscope
  • Leica Dialux 20 Microscope
  • Leica Orthoplan Microscope
  • Nikon 76513 Microscope
  • Odyssey LE-105 Colorstar
  • Olympus 8C401 Microscope
  • Olympus A-LSH-3 Microscope
  • Olympus BH-RFL Microscope
  • Olympus B-LSH-3 Microscope
  • Olympus PME-LSM Microscope
  • Swift MA782 Microscope
  • Swift Y5 Microscope
  • Vickers M32-05-45 Microscope
  • Wild/Leitz 193-049 Microscope
  • Zeiss 3800-59-1660
  • Techni-Lux Matisse LiquidLight (EL-ML351-ML)
  • Sachtler Reporter 100H
FCR Ushio Halogen Lamp

  • DANGER! The Ushio FCR JC12V-100W replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Ushio FCR replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the JC12V-100W FCR Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Ushio FCR bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the FCR Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Ushio FCR lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio FCR lamp.
  • Affix the FCR Ushio replacement lamp securely in the socket. Improper installation of the Ushio FCR replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Ushio FCR lamp seal below 350C.
  • Keep the temperature of the FCR Ushio replacement lamp wall above 250C.
  • Keep the temperature of the Ushio FCR JC12V-100W lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Ushio FCR replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Ushio FCR JC12V-100W replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
