Ushio JCR120V-150WB - 1000940

JCR120V-150WB
Ushio
Lamp JCR120V-150WB
Description 120V 150W Mini 2-Pin (GY5.3) MR16
Brand Ushio
MPN 1000940
UPC 048777161678

$14.97

In Stock

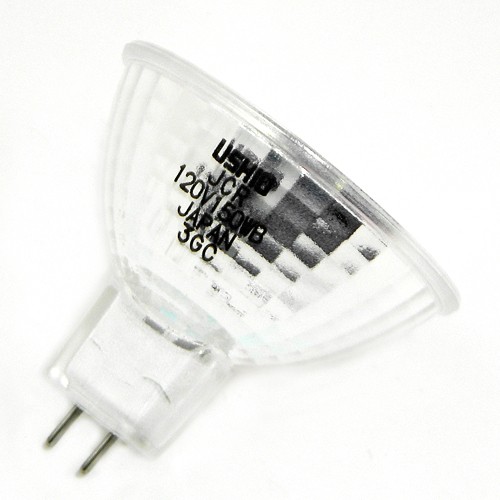

The JCR120V-150WB Ushio 1000940 is a Halogen MR16 120V 150W Lamp with a GY5.3 base.
Specifications for the 1000940 Ushio JCR120V-150WB Replacement Lamp
GENERAL CHARACTERISTICS
Shape MR16
Lamp Base GY5.3 (Miniature 2-Pin, Flat Pins)
Filament CC-8
Bulb Finish Clear
Rated Life 100 hours
Operating Position BD/Hor
PHOTOMETRIC CHARACTERISTICS
Color Temperature 3050 K
ELECTRICAL CHARACTERISTICS
Watts 150 W
Volts 120 V
DIMENSIONS
Maximum Overall Length - MOL 1.75in (44.50mm)
Diameter 2.00in (50.80mm)
PRODUCT INFORMATION
Product Code 1000940
Family Name Ushio JCR Series MR-16 Tungsten Halogen Lamps
Description JCR120V-150WB
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 048777161678
Ushio JCR120V-150WB 1000940 Replacement Bulb Applications & Features

Features

  • Ushio JCR120V150WB Halogen Bulb
  • MR16 Lamp
  • Q150MR16/M
  • Focused Beam for Optical Applications
  • Faceted Dichroic Coated Reflector
  • Only for Use in Approved Enclosed Halogen Fixtures
  • Cool-Lux FOS 11, FOS11
JCR120V-150WB Ushio Halogen Lamp

  • DANGER! The Ushio JCR120V-150WB replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Ushio JCR120V-150WB replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the JCR120V-150WB Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Ushio JCR120V-150WB bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the JCR120V-150WB Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Ushio JCR120V-150WB lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio JCR120V-150WB lamp.
  • Affix the JCR120V-150WB Ushio replacement lamp securely in the socket. Improper installation of the Ushio JCR120V-150WB replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Ushio JCR120V-150WB lamp seal below 350C.
  • Keep the temperature of the JCR120V-150WB Ushio replacement lamp wall above 250C.
  • Keep the temperature of the Ushio JCR120V-150WB lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Ushio JCR120V-150WB replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Ushio JCR120V-150WB replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
