Ushio JCV120V-100WGB/BA15d - 1000968
| Lamp | JCV120V-100WGB/BA15d |
| Description | 120V 100W DC Bay (BA15d) Clear |
| Brand | Ushio |
| MPN | 1000968 |
| UPC | 048777163634 |

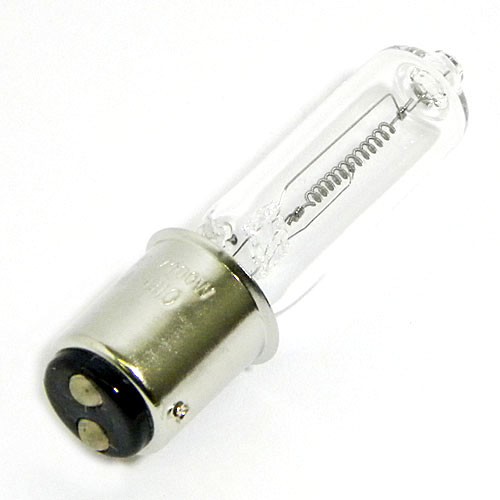

The JCV120V-100WGB/BA15d Ushio 1000968 is a Halogen T4 120V 100W Lamp with a BA15d base.
Specifications for the 1000968 Ushio JCV120V-100WGB/BA15d Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T4 |
| Lamp Base | BA15d (Double Contact Bayonet) |
| Filament | CC-8 |
| Bulb Finish | Clear |
| Rated Life | 2000 hours |
| Light Center Length - LCL | 1.38in (35.00mm) |
| Operating Position | Universal |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 1600 |
| Color Temperature | 2800 K |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 100 W |
| Volts | 120 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 2.44in (62.00mm) |
| Diameter | 0.51in (13.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 1000968 |
| Family Name | Ushio JCV Series Single Ended Bayonet Tungsten Halogen Lamps |
| Description | JCV120V-100WGB/BA15d |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 10 |
| Sales Unit | Each |
| UPC | 048777163634 |
Ushio JCV120V-100WGB/BA15d 1000968 Replacement Bulb Applications & Features
Features
- Ushio JCV120V100WGB Halogen Bulb
- Single Ended Lamp
- Only for Use in Approved Enclosed Halogen Fixtures
JCV120V-100WGB/BA15d Ushio Halogen Lamp
- DANGER! The Ushio JCV120V-100WGB/BA15d replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
- Only use the Ushio JCV120V-100WGB/BA15d replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
- Do not use the JCV120V-100WGB/BA15d Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
- Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
- Do not touch the Ushio JCV120V-100WGB/BA15d bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
- Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the JCV120V-100WGB/BA15d Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
- Never touch the Ushio JCV120V-100WGB/BA15d lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
- Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
- Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio JCV120V-100WGB/BA15d lamp.
- Affix the JCV120V-100WGB/BA15d Ushio replacement lamp securely in the socket. Improper installation of the Ushio JCV120V-100WGB/BA15d replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
- Keep the temperature of the Ushio JCV120V-100WGB/BA15d lamp seal below 350C.
- Keep the temperature of the JCV120V-100WGB/BA15d Ushio replacement lamp wall above 250C.
- Keep the temperature of the Ushio JCV120V-100WGB/BA15d lamp wall below 800C.
- Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
- Ushio JCV120V-100WGB/BA15d replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
- Operate the Ushio JCV120V-100WGB/BA15d replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
- Use an external fuse when required.
- Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
