Ushio JCV130V-250WGSNF - 1001809

Ushio
Lamp JCV130V-250WGSNF (ESM-130V)
Description 130V 250W Mini Can (E11) Frost
Brand Ushio
MPN 1001809
UPC 048777214879

$14.97

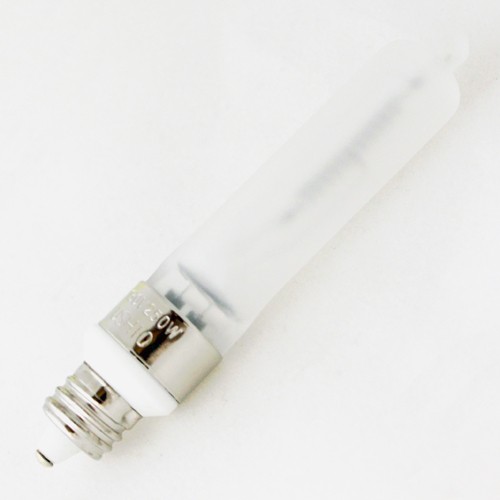

The JCV130V-250WGSNF Ushio 1001809 is a Halogen T4 130V 250W Lamp with an E11 base.
Specifications for the 1001809 Ushio JCV130V-250WGSNF Replacement Lamp
GENERAL CHARACTERISTICS
Shape T4
Lamp Base E11 (Mini Candelabra Screw)
Filament CC-8
Bulb Finish Frost
Rated Life 2000 hours
Light Center Length - LCL 1.61in (41.00mm)
Operating Position Universal
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 4850
Color Temperature 3000 K
ELECTRICAL CHARACTERISTICS
Watts 250 W
Volts 130 V
DIMENSIONS
Maximum Overall Length - MOL 3.15in (80.00mm)
Diameter 0.51in (13.00mm)
PRODUCT INFORMATION
Product Code 1001809
Family Name Ushio JCV Series Single Ended Screw Base Tungsten Halogen Lamps
Description JCV130V-250WGSNF
Ordering Code ESM-130V
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 048777214879
Ushio JCV130V-250WGSNF 1001809 Replacement Bulb Applications & Features

Applications

  • Studio


Features

  • Ushio JCV130V250W Frosted Halogen Bulb
  • Single Ended Lamp
  • 130 Volt Version of ESM 1000360
  • Q250MC 130V
  • Only for Use in Approved Enclosed Halogen Fixtures
JCV130V-250WGSNF Ushio Halogen Lamp

  • DANGER! The Ushio JCV130V-250WGSNF ESM-130V replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Ushio JCV130V-250WGSNF replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the ESM-130V JCV130V-250WGSNF Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Ushio JCV130V-250WGSNF bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the JCV130V-250WGSNF Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Ushio JCV130V-250WGSNF lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio JCV130V-250WGSNF lamp.
  • Affix the JCV130V-250WGSNF Ushio replacement lamp securely in the socket. Improper installation of the Ushio JCV130V-250WGSNF replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Ushio JCV130V-250WGSNF lamp seal below 350C.
  • Keep the temperature of the JCV130V-250WGSNF Ushio replacement lamp wall above 250C.
  • Keep the temperature of the Ushio JCV130V-250WGSNF ESM-130V lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Ushio JCV130V-250WGSNF replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Ushio JCV130V-250WGSNF ESM-130V replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
