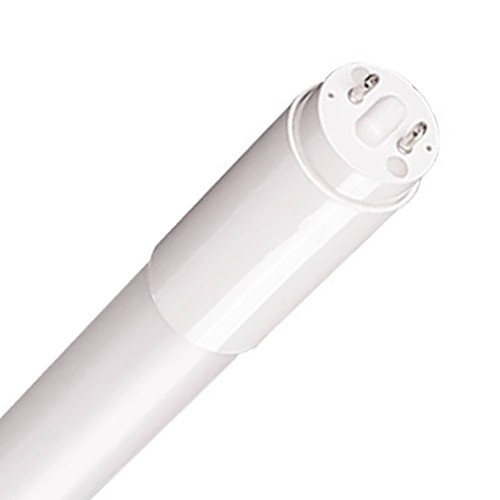

Ushio LED12T8/DW/SD/DL50/48 - 3000681

LED	LED12T8/DW/SD/DL50/48
Description	12.5W 120-277V CRI 80 T8 2-PIN G13 5000K
Brand	Ushio
MPN	3000681
UPC	428777637616
Dimmable	No

An ideal retrofit solution, the Ubiquity™ 2 LED T8 Direct Wire lamps can be wired to one end or to both ends. This significantly reduces your labor and related expenses, and eliminates the need for external ballasts and LED drivers. At 12.5 watts, these DLC listed lamps offer an energy-saving upgrade for F32T8 fluorescent lamps. Ubiquity 2 LED T8 Direct Wire lamps are made with a shatterproof glass tube. Glass provides very good thermal conductivity and transparency. The tube is frosted to prevent glare and allows the 240 degree beam angle (325 degree visible light area) to create a quality lighted environment. Tested to NSF standards, these lamps are ETL Sanitation Listed and suitable for use in areas where food is prepared.

Specifications for the 3000681 Ushio LED12T8/DW/SD/DL50/48 Replacement LED

GENERAL CHARACTERISTICS
Shape	T8
Lamp Base	G13 / (Medium 2-Pin)
Outside Finish	Frosted
Rated Life	50,000 hours

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	1800
Color Temperature	5000 K
Color Rendering Index (CRI)	80

ELECTRICAL CHARACTERISTICS
Watts	12.5 W
Volts	120-277 V

DIMENSIONS
Maximum Overall Length - MOL	48in (1219.2mm)

PRODUCT INFORMATION
Product Code	3000681
Description	LED12T8/DW/SD/DL50/48
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	25
Sales Unit	Each
UPC	428777637616

Ushio LED12T8/DW/SD/DL50/48 3000681 Replacement LAMP Applications & Features

Applications

Fluorescent Troffers
Office Lighting
Warehouse Facilities
Retail Lighting
Healthcare Facilities
School Lighting
Industrial Shop Lighting
Fluorescent Low Bay and High Bay

Features

Significant Energy Saving 12.5W Retrofit Solution for F32T8 Lamps
No Need for External Ballasts or Drivers
Glass Tube – Better Transparence and Thermal Conductivity Than Plastic. No Yellowing or Aging Like Plastic
Conforms to NSF/ANSI 2 – Suitable for Use in Areas Where Food is Prepared
Shatterproof, Coated Glass Lamp
Frosted to Prevent Glare
Instant On / No Flicker
50,000 Hour Rated Life – Long Life Reduces Maintenance Costs
Application Friendly: UV Free and IR Free
Environmentally Friendly: Mercury Free and Lead Free
5-Year Limited Warranty with your existing electronic T8 instant-start or programmed start ballast

Literature for the Ushio LED12T8/DW/SD/DL50/48 3000681 Replacement LAMP

Ushio UBIQUITY™ 2 LED T8 Direct Wire Product Sheet

Installation Guide
