Ushio UMH-250/U ED28 - 5000225

Lamp	UMH-250/U ED28
Description	250W CRI 65-75 ED28 E39 4000K
Brand	Ushio
MPN	5000225
UPC	048777275771

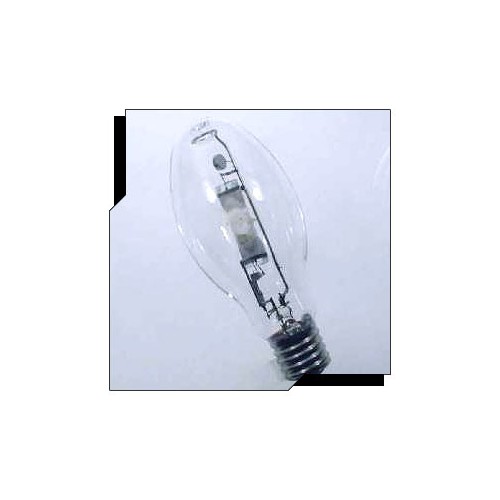

The UMH-250/U ED28 Ushio 5000225 is a High Intensity Discharge ED28 250W Clear Lamp with an E39 base.

Specifications for the 5000225 Ushio UMH-250/U ED28 Replacement Lamp

GENERAL CHARACTERISTICS
Shape	ED28
Lamp Base	E39 (Mogul Screw)
Bulb Finish	Clear
Rated Life	10000 hours
Light Center Length - LCL	5.00in (127.00mm)
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	21000
Color Temperature	4000 K
Color Rendering Index (CRI)	65-75

ELECTRICAL CHARACTERISTICS
Watts	250 W

DIMENSIONS
Maximum Overall Length - MOL	8.31in (211.10mm)

PRODUCT INFORMATION
Product Code	5000225
Family Name	Ushio UMH Series Metal Halide
Description	UMH-250/U ED28
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	12
Sales Unit	Each
UPC	048777275771

Ushio UMH-250/U ED28 5000225 Replacement Bulb Applications & Features

Applications

Commercial and Industrial
Flood Lighting
Stadium and Arena
Tennis and Racquetball Courts
Downlighting
Parking Garages
Security
Wall Sconces
Signage

Features

Ushio MH250U Metal Halide Lamp
Clear ED28 Bulb
White Light 65-75 CRI
Use Only in Enclosed Fixture
M58/E Ballast Type
Made in USA

UMH-250/U ED28 Ushio Multi Vapor Lamp

The UMH-250/U ED28 Ushio lamp may shatter and cause injury if broken.
Dispose of the Ushio UMH-250/U ED28 lamp in a closed container.
Do not use excessive force when installing the UMH-250/U ED28 Ushio lamp.
Do not use the Ushio UMH-250/U ED28 lamp if outer glass is scratched or broken.
Wear safety glasses and gloves when handling the UMH-250/U ED28 Ushio lamp.
Unexpected Ushio UMH-250/U ED28 lamp rupture may cause injury, fire, or property damage.
Do not exceed rated voltage.
Do not store flammable materials near/below the UMH-250/U ED28 Ushio lamp.
Do not turn on the Ushio UMH-250/U ED28 lamp until fully installed.
Do not use beyond rated life.
Do not use the UMH-250/U ED28 Ushio lamp if outer glass is scratched or broken.
Do not use where directly exposed to water or outdoors without an enclosed fixture.
Operate the Ushio UMH-250/U ED28 lamp only in specified position.
Turn the UMH-250/U ED28 Ushio lamp off at least once for 15 minutes per week.
Use only properly rated ballast.
A damaged UMH-250/U ED28 Ushio lamp emits UV radiation which may cause eye/skin injury.
There is a risk of burn, fire, and electrical shock.
Turn power off if glass bulb is broken. Remove and dispose of lamp.
Allow the Ushio UMH-250/U ED28 lamp to cool before handling.
Do not turn on the UMH-250/U ED28 Ushio lamp until fully installed.
Do not use where directly exposed to water or outdoors without an enclosed fixture.
Turn power off before inspection, installation or removal.
Keep combustible materials away from the Ushio UMH-250/U ED28 lamp.
Use in fixture rated for this product.

WARNING: This lamp can cause serious skin burns and eye inflammation from shortwave ultraviolet radiation if the outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.
