Whelen 5GA00FAR - 01-0664112-A1B
| Lighthead | 5GA00FAR |
| Brand | Whelen |
| SAE | Class 1 Certified |
| Lens Color | Amber |
| LED Color | Amber |
| Mount | Recess Mount (Includes Grommet) |
| Cable | 12” Pigtail |
| Volts | 12 VDC |
Whelen's 5G Series is compatible with competitive oval lights that fit all applicable industry horizontal or vertical mount accessories.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0664112-A1B Whelen 5GA00FAR Replacement Lighthead
| GENERAL CHARACTERISTICS | |
| Lens Color | Amber |
| LED Color | Amber |
| Mount | Recess Mount (Includes Grommet) |
| Flash Pattern | 15 Scan-Lock™ |
| Technology | LED |
| SAE | Class 1 Certified |
| Optics | Directional |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 300mA Average / 500mA Peak |
| DIMENSIONS | |
| Height | 3.188in (81.00mm) |
| Width | 7.438in (189.00mm) |
| Depth | 1.25in (32.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-0664112-A1B |
| Series | 5G |
| Description | 5GA00FAR |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen 5GA00FAR 01-0664112-A1B Replacement Lighthead Applications & Features
Features
- Fits all applicable industry mounting accessories
- Mounts either vertical or horizontal
- Fully encapsulated for moisture, vibration, and corrosion resistance
- Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals

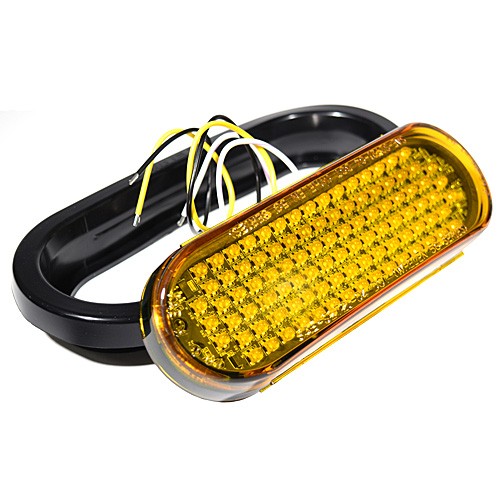

- Vinyl mounting grommet included
- Optional flange available for surface mounting
- Five year warranty
Warranty information for the Whelen 5GA00FAR 01-0664112-A1B Replacement Lighthead
 Whelen 5G Automotive Warranty Information |
