Whelen H50TL12 - 01-0462375-05D

H50TL12
Whelen
Lamp H50TL12
Brand Whelen
Volts 12

$85.46

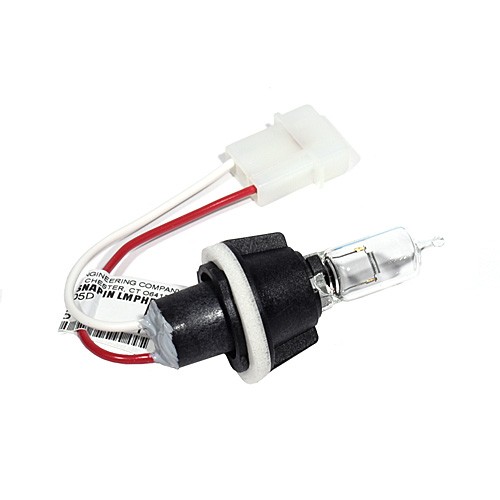

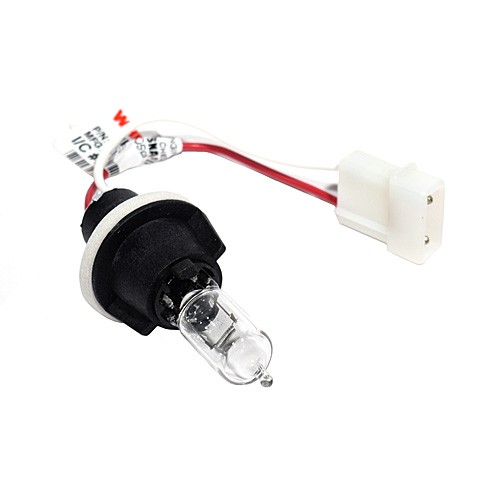

The H50TL12 Whelen 01-0462375-05D is a Halogen 12V 50W Lamp with a Twist-Lock base.
Prop 65 WarningWARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0462375-05D Whelen H50TL12 Replacement Lamp
GENERAL CHARACTERISTICS
Base Twist-Lock
ELECTRICAL CHARACTERISTICS
Watts 50 W
Volts 12
DIMENSIONS
PRODUCT INFORMATION
Product Code 01-0462375-05D
Series Whelen Twist-Lock Halogen Bulbs
Family Name Whelen Twist-Lock Halogen Bulbs, Snap-In
Description H50TL12
SKU Qty 1
Sales Unit Each
Whelen H50TL12 01-0462375-05D Replacement Bulb Applications & Features

Applications

  • Emergency Vehicle


Features

  • Whelen 50W Twist-Lock Halogen Bulb
  • Twist-Lock Bulb for Load Light
  • PN 01-0462375-05D
  • Whelen H50TL12
H50TL12 Whelen Halogen Lamp

  • DANGER! The Whelen H50TL12 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Whelen H50TL12 replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the H50TL12 Whelen replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Whelen H50TL12 bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the H50TL12 Whelen replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Whelen H50TL12 lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Whelen H50TL12 lamp.
  • Affix the H50TL12 Whelen replacement lamp securely in the socket. Improper installation of the Whelen H50TL12 replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Whelen H50TL12 lamp seal below 350C.
  • Keep the temperature of the H50TL12 Whelen replacement lamp wall above 250C.
  • Keep the temperature of the Whelen H50TL12 lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Whelen H50TL12 replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Whelen H50TL12 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
