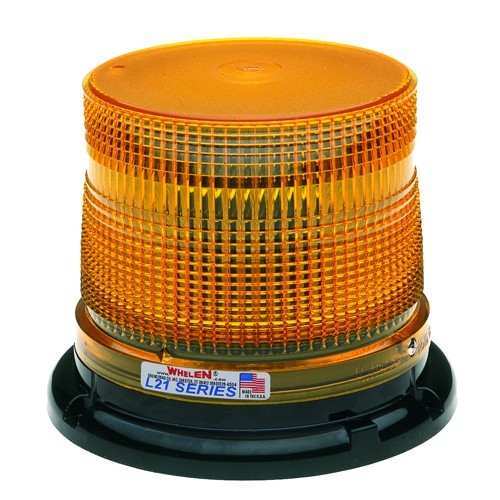

Whelen L21LAP - 01-0686357-A3C
| Beacon | L21LAP |
| Brand | Whelen |
| SAE | Class 1 Certified |
| Dome Color | Amber |
| Profile | Low |
| Mount | Combination |
| Volts | 12 VDC |
| Options | ||
| BGL - Branch Guard for Whelen Low Dome | $38.36 | |
| MIRROR20 - MIRROR MOUNT KIT - Whelen | $46.58 | |
| BBKT20 - "L" BRACKET L21/L22/L10 SERIES | $47.43 | |
Available in multiple mounting options and in high or low dome models, L21 and L22 beacons are durable and suitable for numerous applications.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0686357-A3C Whelen L21LAP Replacement Beacon
| GENERAL CHARACTERISTICS | |
| Dome Color | Amber |
| Mount | Combination |
| Base | Polycarbonate |
| Profile | Low |
| Flash Pattern | 25 Scan-Lock™ Flash Patterns Including Steady-Burn |
| Encapsulated | Yes |
| SAE | Class 1 Certified |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 1.5 Peak / 0.60 Average |
| DIMENSIONS | |
| Diameter | 6.438in (163.00mm) |
| Height | 4.813in (125.00mm) |
| Width | 6.438in (163.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-0686357-A3C |
| Series | L21 Series Encapsulated Super-LED Beacon |
| Description | L21LAP |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen L21LAP 01-0686357-A3C Replacement Beacon Applications & Features
Features
- SAE J845 Class 1 360° (amber).
- Combination mounting: permanent, pipe (1"NPT) and J-hook supplied with 6" pigtail.
- 25 built-in Scan-Lock™ flash patterns plus steady-burn.
- Virtually no EMI radiation.
- Manufactured in America
Literature for the Whelen L21LAP 01-0686357-A3C Replacement Beacon
 Whelen L21LAP Beacon Brochure |
| Whelen L21LAP Installation Guide |
Warranty information for the Whelen L21LAP 01-0686357-A3C Replacement Beacon
| Whelen L21 Series Encapsulated Super-LED Beacon Automotive Warranty Information |
Dimensions for the L21LAP Whelen L21 Series Encapsulated Super-LED Beacon
 |
Mounting for the L21 Series Encapsulated Super-LED Beacon Whelen L21LAP
 |
