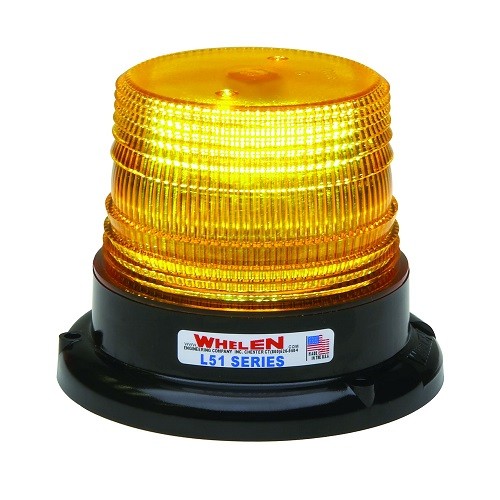

Whelen L51AP - 01-068497211PD
| Options | ||
| MIRROR15 - MIRROR MT KIT 1500/L50 Series | $41.10 | |
Available in multiple mounting options, L50 Series beacons are durable and suitable for numerous applications.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-068497211PD Whelen L51AP Replacement Beacon
| GENERAL CHARACTERISTICS | |
| Dome Color | Amber |
| Mount | Permanent |
| Base | Polycarbonate |
| Flashes per Min (FPM) | 75 SignalAlert™ |
| Flash Pattern | 25 flash patterns |
| Technology | Super-LED |
| Encapsulated | Yes |
| SAE | Class 1 Certified |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 1.5 Peak / 0.6 Average |
| DIMENSIONS | |
| Diameter | 5.00in (127.00mm) |
| Height | 3.75in (95.00mm) |
| Width | 5.00in (127.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-068497211PD |
| Series | L50 Series Super-LED Beacon |
| Description | L51AP |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen L51AP 01-068497211PD Replacement Beacon Applications & Features
Features
- SAE Class 1 Certified
- 25 flash patterns including sync and Scan-Lock.
- Super-LEDs are rated for 100,000 hours of operation.
- Twist-off polycarbonate dome.
- Full reverse polarity protection.
- Permanent mount supplied with 6” pigtail.
- Manufactured in America
Literature for the Whelen L51AP 01-068497211PD Replacement Beacon
 Whelen L51AP Beacon Brochure |
| Whelen L51AP Installation Guide |
Warranty information for the Whelen L51AP 01-068497211PD Replacement Beacon
| Whelen L50 Series Super-LED Beacon Automotive Warranty Information |
Dimensions for the L51AP Whelen L50 Series Super-LED Beacon
 |
Mounting for the L50 Series Super-LED Beacon Whelen L51AP
 |
