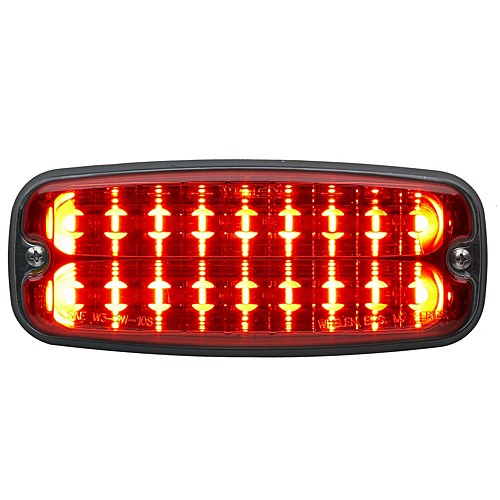

Whelen M7R - 01-066A796-R0K
| Lighthead | M7R |
| Brand | Whelen |
| SAE | Class 1 Certified |
| Lens Color | Red |
| LED Color | Red |
| Mount | Surface |
| Volts | 12 VDC |
| Options | ||
| M7FC - Chrome Flange for M7 Series | $15.65 | |
| M7FB - Black Flange, M7 Series | $10.21 | |
With a unique lens shape and patented Linear-LED® designed reflector assembly, M Series lightheads are completely illuminated for unmatched high intensity warning and low current consumption.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-066A796-R0K Whelen M7R Replacement Lighthead
| GENERAL CHARACTERISTICS | |
| Lens Color | Red |
| LED Color | Red |
| Mount | Surface |
| Flash Pattern | 159 Scan-Lock™ |
| Technology | Super-LED |
| SAE | Class 1 Certified |
| Optics | Directional |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 2.25 Peak / 0.9 Average |
| DIMENSIONS | |
| Height | 3.375in (86.00mm) |
| Width | 7.625in (194.00mm) |
| Depth | 1.375in (35.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-066A796-R0K |
| Series | M7 |
| Description | M7R |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen M7R 01-066A796-R0K Replacement Lighthead Applications & Features
Features
- Multiple Scan-Lock™ flash patterns, many being California Title XIII compliant. Meets KKK-1822F, NFPA 1901, NFPA 1917, SAE, and EC65 specifications
- Choose flash patterns from solid, left/right, top/bottom, in/out, or diagonal sequencing
- Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
- Solid color models have 159 Scan-Lock™ flash patterns
- Surface mounts via two screws for easy installation
- Five year warranty
Warranty information for the Whelen M7R 01-066A796-R0K Replacement Lighthead
 Whelen M7 Automotive Warranty Information |
