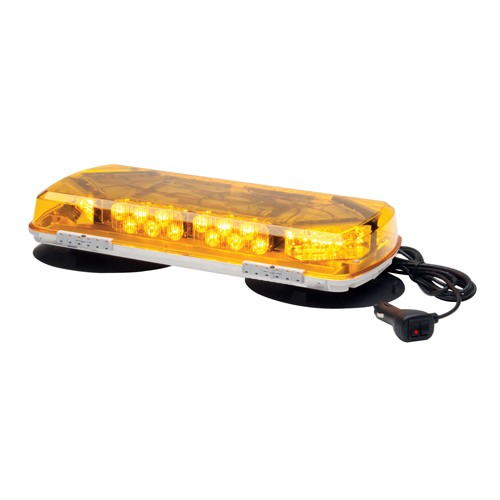

Whelen MC16VA - 01-0687121-AVB
| Lightbar | MC16VA |
| Brand | Whelen |
| SAE | Class 1 Certified |
| Dome Color | Amber |
| Profile | Low |
| Mount | Magnetic/Suction |
| Volts | 12 VDC |
The Mini Century lightbar is a reliable, compact version of Whelen's efficient Century lightbar. Available in three lengths, the versatile Mini Century is easy to operate and service.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0687121-AVB Whelen MC16VA Replacement Lightbar
| GENERAL CHARACTERISTICS | |
| Dome Color | Amber |
| Mount | Magnetic/Suction |
| Base | Extruded Aluminum |
| Profile | Low |
| Flash Pattern | 17 Scan-Lock™ |
| Technology | Linear Super-LED Corners / TIR6 Super-LED inboards |
| SAE | Class 1 Certified |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 4.8 Peak / 3.0 Average |
| DIMENSIONS | |
| Height | 2.50in (64.00mm) |
| Width | 11.00in (279.00mm) |
| Depth | 7.50in (191.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-0687121-AVB |
| Series | Century Series Mini Lightbar |
| Description | MC16VA |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen MC16VA 01-0687121-AVB Replacement Lightbar Applications & Features
Features
- Extruded aluminum platform for rugged, long-life dependability.
- Offers four corner Linear Super-LED® modules which provide 360º coverage for SAE Class I certification.
- Standard current switching with Scan-Lock™ flash patterns and pattern override.
- Low profile with amber outer lenses and compression fit gasket for superior moisture resistance.
- Clip-Lock™ system allows easy removal of lightbar domes for service or upgrade.
- Manufactured in America
Literature for the Whelen MC16VA 01-0687121-AVB Replacement Lightbar
 Whelen MC16VA Mini Light Bar Brochure |
| Whelen MC16VA Mini Light Bar Installation Guide |
Warranty information for the Whelen MC16VA 01-0687121-AVB Replacement Lightbar
| Whelen Century Series Mini Lightbar Automotive Warranty Information |
Dimensions for the MC16VA Whelen Century Series Mini Lightbar
 |
 |
Mounting for the Century Series Mini Lightbar Whelen MC16VA
