Whelen MC23SA - 01-0687122-ASB
| Lightbar | MC23SA |
| Brand | Whelen |
| SAE | Class 1 Certified |
| Dome Color | Amber |
| Profile | Low |
| Mount | Stud Mount 0.75in (19mm) |
| Volts | 12 VDC |

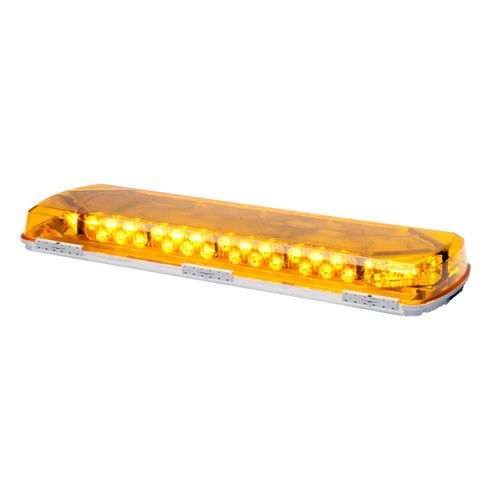

The Mini Century lightbar is a reliable, compact version of Whelen's efficient Century lightbar. Available in three lengths, the versatile Mini Century is easy to operate and service.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0687122-ASB Whelen MC23SA Replacement Lightbar
| GENERAL CHARACTERISTICS | |
| Dome Color | Amber |
| Mount | Stud Mount 0.75in (19mm) |
| Base | Extruded Aluminum |
| Profile | Low |
| Flash Pattern | 17 Scan-Lock™ |
| Technology | Linear Super-LED Corners / TIR6 Super-LED inboards |
| SAE | Class 1 Certified |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 7.2 Peak / 4.4 Average |
| DIMENSIONS | |
| Height | 2.50in (64.00mm) |
| Width | 23.00in (584.00mm) |
| Depth | 7.50in (191.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-0687122-ASB |
| Series | Century Series Mini Lightbar |
| Description | MC23SA |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen MC23SA 01-0687122-ASB Replacement Lightbar Applications & Features
Features
- Extruded aluminum platform for rugged, long-life dependability.
- Offers four corner Linear Super-LED® modules which provide 360º coverage for SAE Class I certification.
- Standard current switching with Scan-Lock™ flash patterns and pattern override.
- Low profile with amber outer lenses and compression fit gasket for superior moisture resistance.
- Clip-Lock™ system allows easy removal of lightbar domes for service or upgrade.
- Manufactured in America
Literature for the Whelen MC23SA 01-0687122-ASB Replacement Lightbar
 Whelen MC23SA Mini Light Bar Brochure |
| Whelen MC23SA Mini Light Bar Installation Guide |
Warranty information for the Whelen MC23SA 01-0687122-ASB Replacement Lightbar
| Whelen Century Series Mini Lightbar Automotive Warranty Information |
Dimensions for the MC23SA Whelen Century Series Mini Lightbar
 |
 |
Mounting for the Century Series Mini Lightbar Whelen MC23SA
